NexGen Rat 1800 Tall

NexGen Rat Housing that complies with CCAC (Canadian Council on Animal Care) requirements and other global standards for rat housing, permitting optimal bipedal posture and animal enrichment.

  • Meets CCAC requirements for rat housing
  • Internal cage height of 11.934 in / 303 mm
  • Rack design accommodates both Tall and Standard 1800 cages
  • Existing 1800 cage system components are compatible with the 1800 Tall cage system (excluding Wire Bar Lid)
  • Optional hatch available in cage top for easy access to animals
Features

Increased Internal Height

With an internal height of 11.934 in / 303 mm, plus multiple enrichment options, the NexGen Rat 1800 Tall cage permits bipedal posture and animal enrichment.

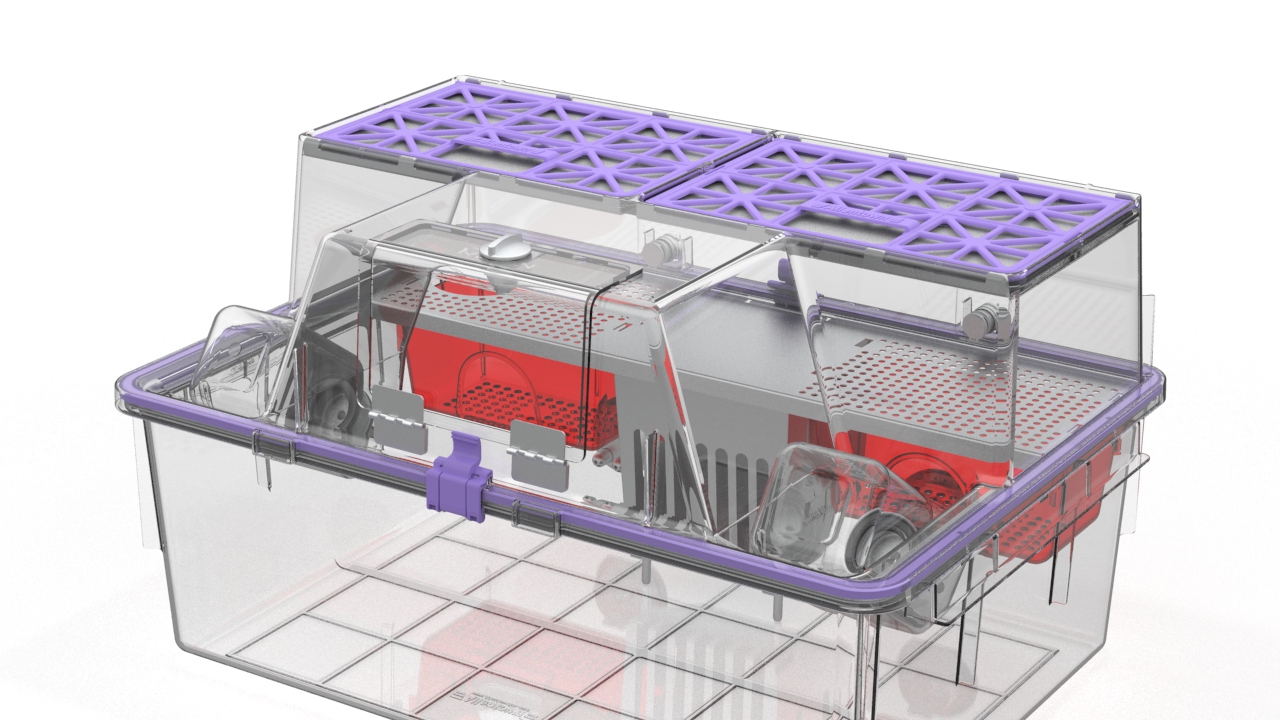

Optional Hatch

The NexGen Rat 1800 Tall cage has an optional, hinged hatch in the lid that provides easy and convenient access to the animals.

Quiet Operation

There's so little you'll hear when using a NexGen that it's easier to describe what you won't: no loud hum, no swirling fan, no air noise as it gets sucked into the blower intake... just quiet. Energy efficient ECM motors along with design expertise applied by Allentown airflow experts ensures you'll barely even notice that the blowers are on.

Components
Cage System with Rear Shelf and Enrichment Lofts
23.161 in x 12.828 x in x 16.228 in
588 mm x 326 mm x 412 mm
Floor space: 280 in² | 1800 cm²

Bottle

350 mL
.87 lbs | 395 g (filled)
Item # PC350BCL+SLC
450 mL
1.12 lbs | 508 g (filled)
Item # PC450BCL+SLC

Top

External Bottle Top
22.511 in x 8.317 in x 16.157 in | 4.75 lbs
572 mm x 211 mm x 410 mm | 2155 g
Item # 232850-1 (without locks)
Item # 232850-2 (with locks)
External Bottle Top with Hatch
22.511 in x 8.317 in x 16.157 in | 4.75 lbs
572 mm x 211 mm x 410 mm | 2155 g
Item # 232932-1 (without locks)
Item # 232932-2 (with locks)

Cardholder

3 in x 5 in Vertical
Item # VH35P9-8
(also available in 3 in x 4 in)
3 in x 5 in Horizontal
Item # HH35P9-8
(also available in 3 in x 4 in)

WBL / Feeder

Half Pocket Wire Bar Lid
Food capacity: 998 g
21.766 in x 8.468 in x 15.193 in | 4.1 lbs
553 mm x 215 mm x 386 mm | 1860 g
Item # 232853
Hanging Feeder: Rat
Food capacity: 1202 g
5.495 in x 7.311 in x 4.879 in | 1.00 lbs
140 mm x 186 mm x 124 mm | 454 g
Item # 228934
Hanging Feeder: Guinea Pig
Food capacity: 998 g
3.5 in x 7.218 in x 5.519 in | 0.84 lbs
89 mm x 183 mm x 140 mm | 381 g
Item # 228542
Hanging Feeder: Guinea Pig/Ferret
Food capacity: 1202 g
5.065 in x 7.264 in x 4.196 in | 1.44 lbs
129 mm x 185 mm x 107 mm | 653 g
Item # 228560

Enrichment

Enrichment Loft
7.430 in x 4.188 in x 3.525 in | .30 lbs
189 mm x 106 mm x 90 mm | 136 g
Item # 315584
Front Loft
5.923 in x .297 in x 3.500 in | .15 lbs
150 mm x 8 mm x 89 mm | 68 g
Item # 227356
Rear Shelf (Stand Alone)
21.719 in x 0.689 in x 15.249 in | 1.90 lbs
552 mm x 18 mm x 387 mm | 862 g
Item # 227429

Cage

Cage
23.161 in x 7.644 in x 15.534 in | 5.40 lbs
588 mm x 194 mm x 395 mm | 2449 g
Item # 226231-1 (without automatic watering - shown above)
Item # 226231-2 (with automatic watering)

All component data shown above are accurate as of publication date, but are subject to change without notice. Please consult with your Technical Sales Consultant before ordering to ensure accuracy.

Click here to learn about the chemical resistance of the medical-grade specialty polymers used in our caging.
NexGen T-99 cage top filters are not dry heat sterilization compatible. A dry heat compatible filter can be provided.
All dimensions shown are Width x Height x Depth.

Colony Health Monitoring

Sentinel

Allentown and Charles River Laboratories have partnered together to develop the Exhaust Air Dust collection methodology — or EAD®. Available in two configurations, neither system requires the use of soiled-bedding sentinel animals, but instead captures and samples aggregate exhaust air from IVCs using a patented collection media that attracts dust particles but doesn't load like a filter, or impact airflow.

Learn More

Sentinel™ EAD®: US Patent 10,575,495 B2, Canadian Patent 2,987,625. Sentinel2™: US Patent 11,510,391 B2, Canadian Patent No. 3,101,445. Sentinel is a trademark of Allentown, LLC. EAD is a registered trademark of Charles River Laboratories, Inc.
Airflow Solutions

Industry leading airflow solutions.

The EcoFlo family of blowers are the most energy efficient, ergonomically friendly, and quietest blowers we've ever produced. Offered in a wide variety of solution friendly configurations - including rack mounted, wall mounted, ceiling mounted and free-standing tower - these blowers share the same efficiencies, ease of use, superior control, and dependability that are the hallmarks of all Allentown products.

Learn More

Specifications

The difference is in the details. Take a closer look.

With more than 50 years worth of experience and expertise in design, engineering and manufacturing, Allentown solutions are not only crafted to perfection, they are also meticulously documented to provide users with all of the information needed to maximize their value. Take a closer look by downloading the data sheet.

Download Data Sheet
