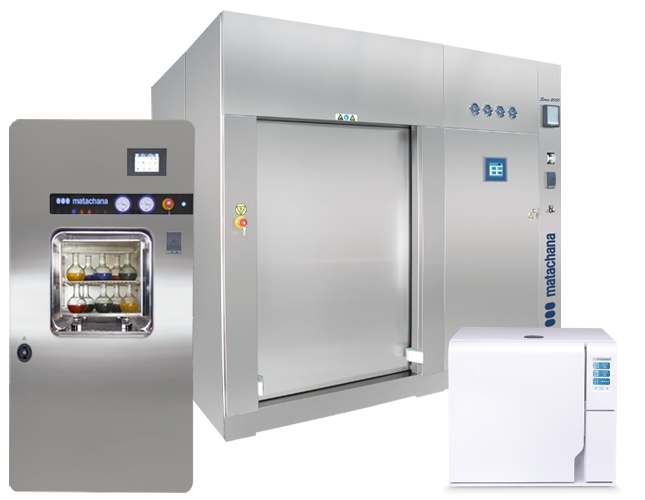

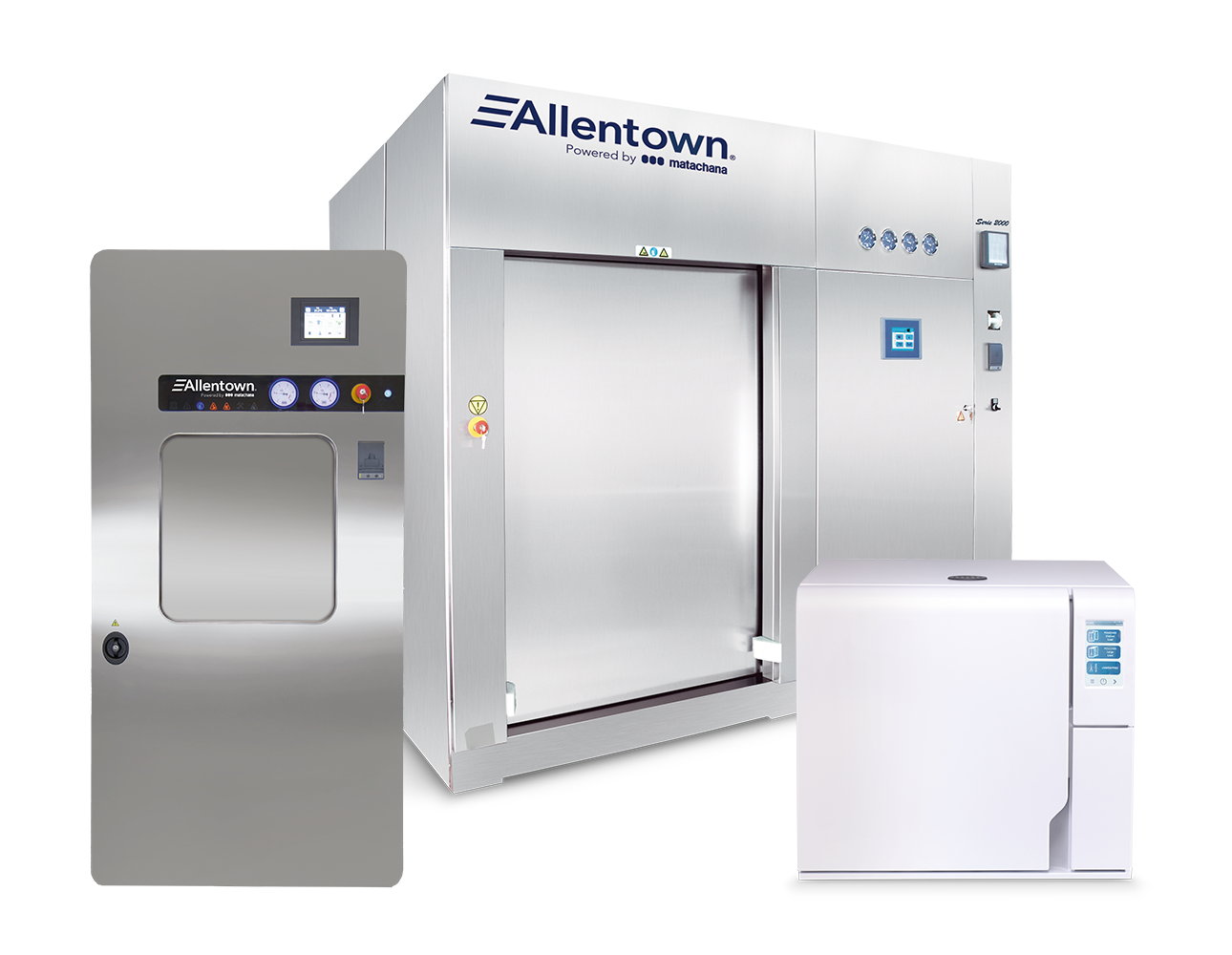

Sterilizers
Steam sterilization in animal facilities and laboratories involves very defined specifications and requirements. For this reason, Allentown offers MATACHANA sterilizers developed to provide maximum and continuous performance in these types of environments. They cover a wide range of applications including processing lab animal housing, bedding boxes, feed, glassware, instruments, porous loads, liquids (open and closed), and other laboratory elements. Sterilizers are available in a wide range of sizes and integrate the latest technology to achieve high-performance, energy savings, and reduced utility consumption.
Allentown represents Matachana products exclusively in the United States. Matachana represents Allentown products exclusively in Germany.
Applications
- Life science research facilities, microbiology laboratories, and biosafety BSL2 and BSL3
- Sterilization programs for solids, including protein diets. Adjustable temperatures
- Sterilizations for liquids in non-hermetically sealed containers
- High-efficiency and customization for reduced utility consumption
Features
- S/s Chamber and Jacket 1.4404 (AISI-316L)
- Pneumatic sliding vertical door(s) built from S/s 1.4404 (AISI 316L)
- High-resistance silicone seal locking system
- Hinged front door for easy access to service chamber
- Chamber and steam manometers in the front (loading area)
- High-performance vacuum using water ejector (Venturi system)
- User-friendly interface for a quick view of controls and parameters
- Digital thermal printer for cycle recording
Options
- Adjustable temperature between 105 and 135°C, with probe inside the chamber
- Low temperature, with adjustable values between 70 and 105°C
- Air treatment system through a 0,2 µ self sterilizable filter condensate line and condensates treatment
- Connectivity to external cooling system for increased water savings and autoclaving reduced cycle time
- Touchscreen in unloading area. Video recorder
- Customization available upon request
The difference is in the details. Take a closer look.
Allentown solutions are not only crafted to perfection, they are also meticulously documented to provide users with all of the information needed to maximize their value. Take a closer look by reviewing the materials below.
SNA2000 I
Available in the following chamber sizes:
| W | H | D | ft³ |
|---|---|---|---|
| 27 | 57 | 38 | 34 |
| 27 | 57 | 50 | 45 |
| 38 | 57 | 50 | 61 |
| 38 | 57 | 60 | 74 |
| 38 | 57 | 94 | 117 |
| 38 | 57 | 131 | 162 |
| 38 | 57 | 169 | 209 |
| 49 | 85 | 66 | 159 |
| 43 | 81 | 86 | 175 |
| 49 | 85 | 75 | 181 |
| 49 | 85 | 86 | 208 |
| 49 | 85 | 96 | 234 |
SNA1500 I Series
Available in the following chamber sizes:
| W | H | D | ft³ |
|---|---|---|---|
| 26.375 | 43.25 | 30.375 | 20.0 |
| 26.375 | 43.25 | 30.375 | 20.0 |
| 26.375 | 43.25 | 43.25 | 28.6 |
| 26.375 | 43.25 | 43.25 | 28.6 |
| 26.375 | 43.25 | 56.25 | 37.2 |
| 26.375 | 43.25 | 56.25 | 37.2 |
| 26.375 | 43.25 | 69.25 | 45.8 |
| 26.375 | 43.25 | 69.25 | 45.8 |
| 26.375 | 43.25 | 82.25 | 54.3 |
| 26.375 | 43.25 | 82.25 | 54.3 |
SNA1000 I Series
Available in the following chamber sizes:
| W | H | D | ft³ |
|---|---|---|---|
| 26 | 26 | 25 | 10 |
| 26 | 26 | 39 | 16 |
| 26 | 26 | 50 | 20 |
| 26 | 26 | 51 | 20 |
| 26 | 26 | 68 | 27 |
| 26 | 26 | 79 | 32 |
SNA500 I Series
Sterilizers for laboratory, industrial and scientific applications, feature adjustable temperatures and cycles for solids and liquids, dedicated diet autoclaving cycle, and user-friendly controls. Non-proprietary components.
Available in the following chamber sizes:
| W | H | D | ft³ |
|---|---|---|---|
| 20 | 20 | 27 | 6 |
| 20 | 20 | 40 | 9 |
| 20 | 20 | 51 | 11 |
Benchtop Laboratory Autoclave
Features and Benefits
- High-end touchscreen and an intuitive, simple menu structure
- Traceability and easy communication
- 2 USB ports | Ethernet port for connectivity
- Customized start of selected cycle by date and time
- Back-up internal memory with up to 200 cycles
- Patented vacuum-assisted drying technology
- Offers fast cycles for small and large loads
D600 Series Dry Heat Sterilizer
The BetterBuilt D600 Series Dry Heat Sterilizer uses electric generated forced-air convection technology for reduced energy consumption. Compared to steam autoclaves, no water usage is required, maintenance is less, and cost to own and operate is lower. Installation is simple and flexible with onsite assembly capability.
- Bolsters user-friendly operation
- Provides optimal sterilization
- Ensures lasting durability
D403 Series Washer Decontaminator
The BetterBuilt Model D403 Series Washer Decontaminator provides safe and efficient cleaning of surgical instruments and utensils. Greater throughput and flexible programming options are designed to best meet clinical needs.
- Flexible to your specific requirements
- Enhances efficiency
- Ease of use for operators
