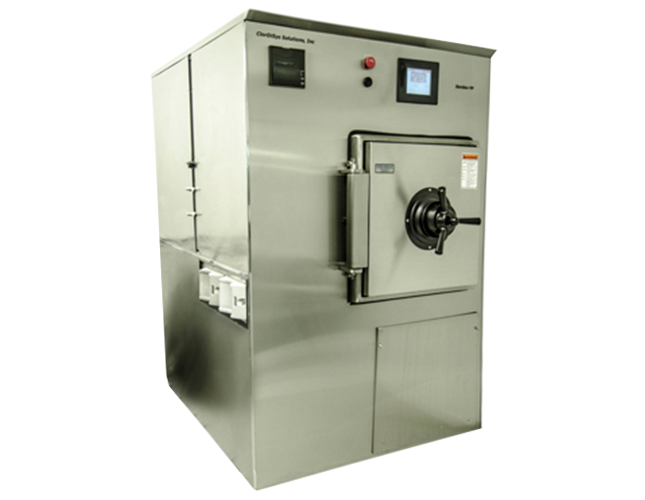

Steridox Chlorine Dioxide Gas Sterilizer
Rapid, ambient-temperature chlorine dioxide gas sterilization for medical devices, laboratories, and research environments.
The Steridox is a chlorine dioxide (CD) gas sterilizer designed for use in pharmaceutical manufacturing, medical device production, laboratory, and research settings. Available in a wide range of chamber sizes—from multiple cubic feet to full pallet-scale systems—it provides a flexible and validation-ready solution for in-house sterilization.
- Rapid, ambient-temperature sterilization
- Validation-ready process control and data logging
- Scalable chamber sizes from small loads to multiple pallets
- Compatible with sensitive materials and electronics
- Designed to support in-house sterilization strategies
Chlorine dioxide gas sterilization provides an effective alternative to traditional ethylene oxide (EtO) processes without the liabilities associated with explosive or carcinogenic sterilants.
The Steridox-14 utilizes a rugged industrial control system and is constructed of corrosion-resistant 316L stainless steel for long service life in demanding environments. Sterilization cycles are typically completed in a matter of hours, and all processing occurs within a single sealed chamber that can be safely located within existing facility spaces.
For manufacturers seeking to bring sterilization in-house, the Steridox-14 eliminates the need for damage-limiting construction, Class I Division 1 electrical installations, and extensive aeration rooms required by EtO systems
REQUEST MORE PRODUCT INFORMATIONThe Steridox-14 features a sophisticated real-time photometric chlorine dioxide concentration monitoring system that allows for tightly controlled and repeatable sterilization cycles.
This system supports consistent process control and simplifies validation by providing accurate concentration measurement throughout each cycle. Upon completion, a comprehensive run record is generated that includes cycle date, time, steps, temperature, pressure, and chlorine dioxide concentration.
Run data can be electronically logged using the integrated USB and SD card interfaces, with optional printed run records available. Historical and real-time trending of cycle data is supported through a password-protected recipe management system. All instrumentation can be calibrated to traceable standards.
Workflow Integration
- Easily incorporated into manufacturing, laboratory, or contract sterilization workflows
- Supports in-house sterilization at the end of production lines
- Allows devices to be sterilized in clamshells, display boxes, or final packaging
- Enables multiple cycles per shift due to typically shorter cycle times
- Suitable for pharmaceutical, medical device, and research environments
Features & Applications
Chlorine Dioxide Gas Sterilization
A true gas with excellent penetration and
distribution properties that is unaffected by
temperature or load configuration and is EPA-registered as a sterilant.
Advanced Concentration Monitoring
Integrated UV-VIS spectrophotometric
monitoring provides accurate, real-time
chlorine dioxide concentration control for
consistent, validation-ready cycles.
Vacuum and Ambient Cycles
Supports sterilization at either ambient
pressure or under vacuum to accommodate a
wide range of device types and packaging
configurations.
Printing and USB Data Logging
Cycle parameters are digitally recorded via USB
or SD card and can be exported, with optional
printed run records for documentation.
Configurations
- Custom chamber sizing available
- Configurations range from multiple cubic feet to full pallet-scale systems
- CD generation and control modules available to convert existing stainless-steel chambers
